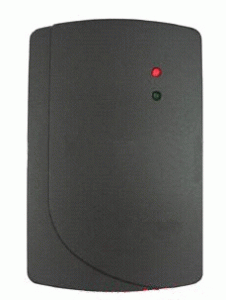

OTR110 RFID HF Door Access Card Reader
OTR110 reader is a reliable 13.56MHz RFID reader. Designed with a small physical profile, OTR110 can be readily installed in most environments. The IP67 ABS casing, clear audible buzzer, a robust circuitry and low power consumption also makes it a reliable choice of reader for most outdoor RFID application deployments.
*Also available with OTR800 (802A) Mifare reader module
| Operating Frequency | 13.56MHz |
| Reading Distance | < 10cm |
| Contactless Cards | MIFARE Card |
| Interface | Wiegand26 and ABA |
| Baud Rate | 106 kbit |
| Power Supply | 12VDC±5% (Tolerating 9V to 15v) |
| Operating Current | 65mA to 80mA |
| Read Response | < 0.1 sec |
| Operating Temperature | -20°C to +50°C |
| Operating Humidity | 0 to 90%RH |
| Dimensions | 115 x 75 x 21mm |
| Housing | ABS |
| IP Rating | IP67 |
| Weight | 170g |
| Read Indication | Red & Green LED / Buzzer |
*Subject To Change Without Prior Notice
