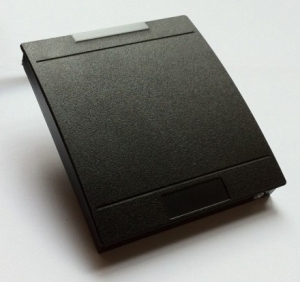

OTR803 is a multi-purpose reader/writer module designed to provide secure contactless technology to systems and hardware platforms.
Designed with a small footprint, OTR803 allows integration in compact systems where space is scarce. Together with a detached and customizable antenna, OTR803 allows antenna design to be optimized to the platform space requirement.
And like OTR800, OTR803 comes with a field upgradable firmware feature, you will be able to deploy and make firmware upgrades to adapt to your application needs in a cost-effective and timely manner.
|ISO Standard||ISO 14443A
|Reading Distance||< 8cm
|Interface||USB / RS232 / Wiegand 26/ Wiegand 23 / PS2|
|Baud Rate||9600 – 11520 bps
|Power Supply||5VDC±5% Maximum: 200mW|
|Read Response||< 0.1 sec|
|Operating Temperature||0°C +50°C|
|Storage Temperature||-10°C to +70°C|
|Operating Humidity||0 to 90%RH|
|Dimensions||Module: 75.6 x 22.5mm
Casing: 105 x 93 x 20mm
|Software Developer Kit||OTR800 SDK.rar|
*Subject To Change Without Prior Notice
